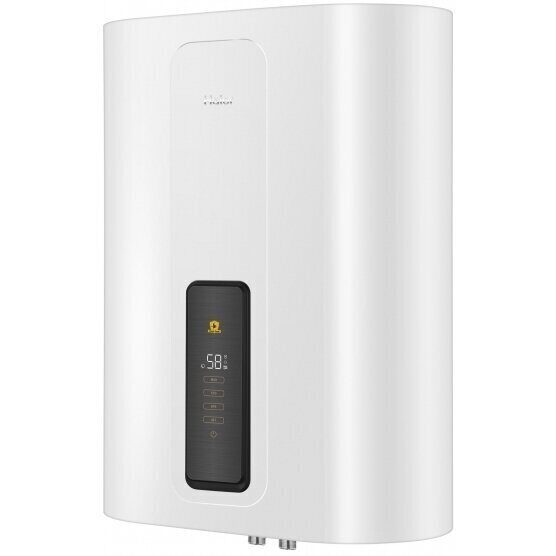

Haier ES50V-TF7W(EU) electric water heater, 50 l, Wi-Fi, 2 × 1.5 kW, vertical/horizontal

Haier ES50V-TF7W(EU) is a modern electric storage water heater with a 50-litre capacity, double-tank construction, electronic control and built-in Wi-Fi. Its flat body is only 320 mm deep, making it suitable for installations where available space is limited.

The water heater can be installed both vertically and horizontally, allowing the installation position to be adapted to the layout of a bathroom, kitchen or utility room.

The ES50V-TF7W(EU) uses two separate tanks and two heating elements rated at 1.5 kW + 1.5 kW. Haier's current technical specification lists the total rated power as 3000 W.

Both heating elements are made of titanium. Haier uses titanium heating elements to provide improved corrosion resistance and durability. The internal tanks are additionally protected by a Super Enamel coating and magnesium anode.

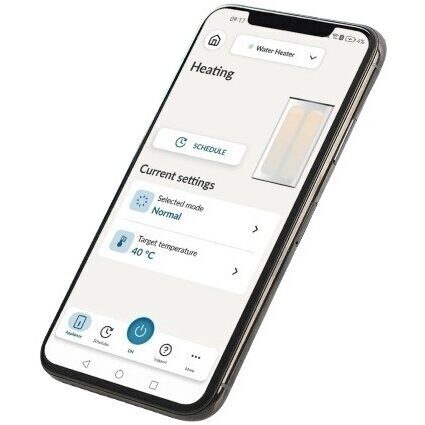

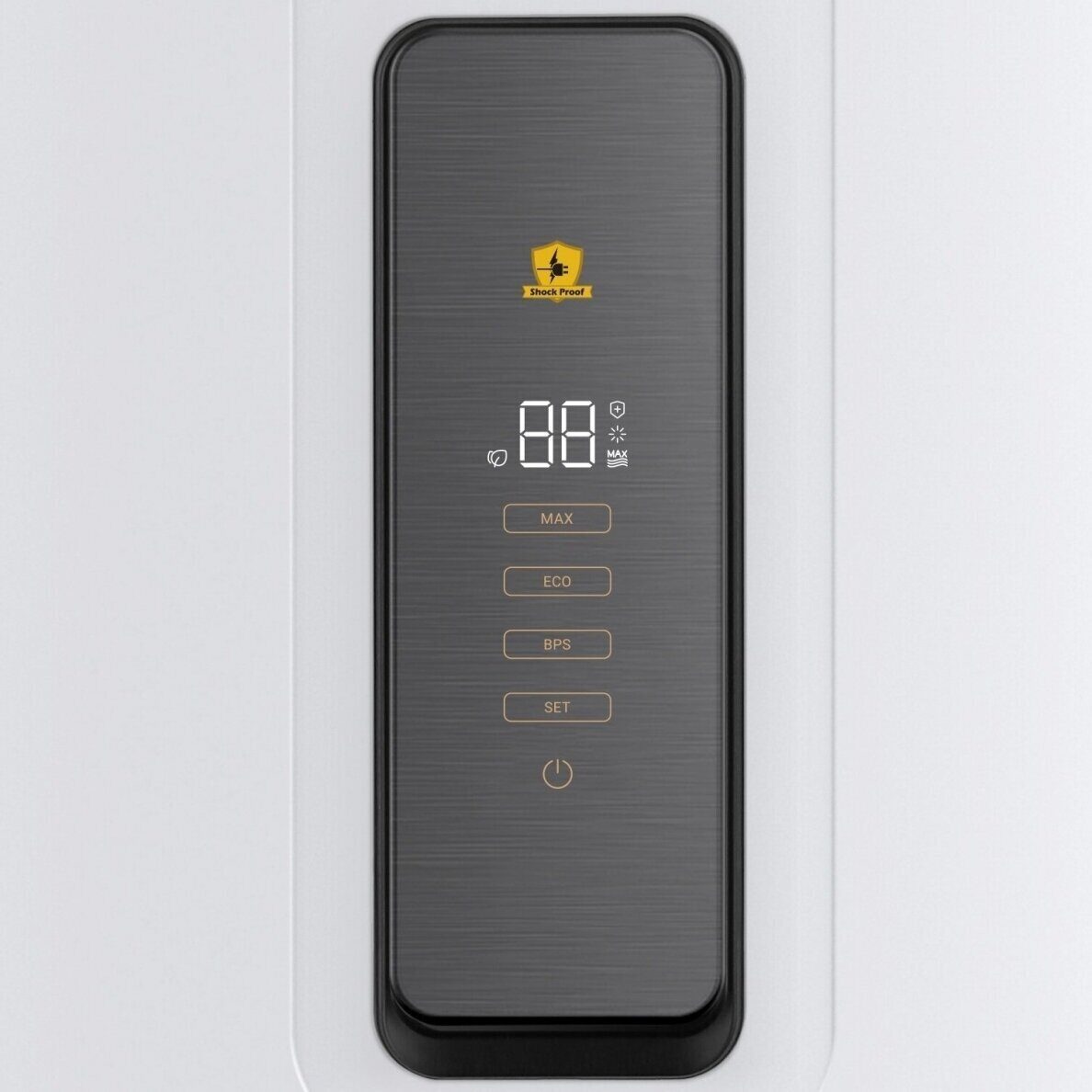

Built-in Wi-Fi provides remote-control functionality. The electronic control system also includes ECO, MAX and BPS operating modes.

ECO mode is intended for more economical everyday operation, while MAX mode is designed for situations where increased hot-water availability is required.

In BPS (Bacteria Proof System) mode, the water is heated to approximately 80 °C to inhibit bacterial growth inside the tanks. The manufacturer's rated water temperature is 75 °C.

Haier's patented Shock Proof technology provides additional electrical safety protection. PUF thermal insulation technology is used to help minimise heat loss.

The appliance has an IPX4 water-protection rating, a rated working pressure of 8 bar and an energy efficiency class of B.

Haier ES50V-TF7W(EU) is suitable for users looking for a compact modern 50-litre electric water heater with two tanks, two 1.5 kW titanium heating elements, Wi-Fi control and flexible vertical or horizontal installation.

Key advantages

• Double tank – two-tank construction in a compact body.
• 2 × 1.5 kW – two separate heating elements.
• Titanium heating elements – improved corrosion resistance.
• Wi-Fi – remote-control functionality.
• Vertical / horizontal installation – flexible positioning.
• BPS – heating to approximately 80 °C.
• ECO – economical everyday operation.
• MAX – increased hot-water availability.
• Shock Proof – Haier electrical safety technology.
• Super Enamel + magnesium anode – additional tank protection.
• Only 320 mm deep – suitable for limited installation space.
