ARISTON PRO ECO 50-80-100 electronic thermostat 65108564

ARISTON 65108564 is an electronic temperature regulator designed for water temperature control and operation management of compatible ARISTON PRO ECO electric water heaters.

This spare part is used for ARISTON PRO ECO 50, 80 and 100 litre vertical electric water heaters. The temperature regulator controls the switching on and off of the water heater according to the set temperature.

This part is suitable when the existing temperature regulator is faulty, the water heater does not heat water correctly, does not maintain the selected temperature, does not switch on or does not switch off at the correct moment.

Before ordering, it is recommended to compare the code, marking and electrical connections of the existing part with the new spare part. The part may be marked with codes 65108564, 000342403203 or marking TBSE 8A T70 CU70.

Technical information

Manufacturer: ARISTON
Part type: electronic temperature regulator / thermostat
Manufacturer code: 65108564
Product reference: 000342403203

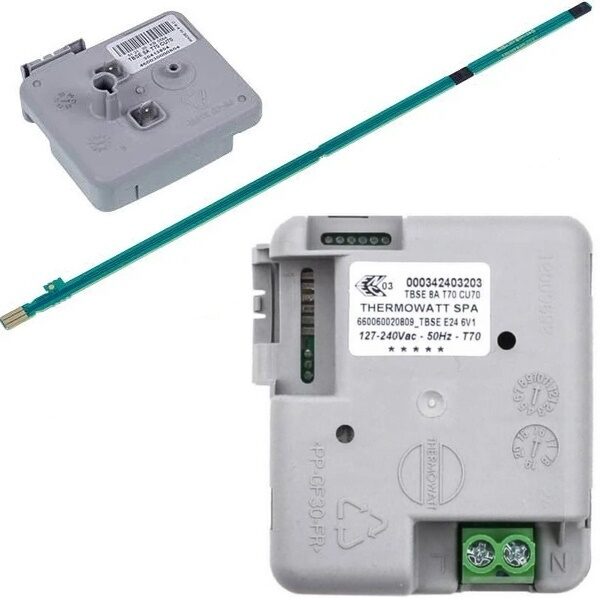

Marking on the part: TBSE 8A T70 CU70
Voltage: 220–240 V
Frequency: 50 Hz
Current load: 8 A
Temperature class: T70
Intended for: ARISTON electric water heaters
Main compatibility: ARISTON PRO ECO 50 / 80 / 100 vertical water heaters
Compatible / replacement codes: 000342403203, 30413804, 65108564, 460030000804, 00206026, 65107537
Installation location: water heater control unit
Connection: electrical connection to the water heater
Function: water temperature control and heating management
Condition: new spare part

Compatible models

ARISTON PRO ECO 50 V
ARISTON PRO ECO 80 V
ARISTON PRO ECO 100 V

Important information before purchase

Before ordering, please check the marking and connection layout of the existing temperature regulator. Spare part compatibility must be confirmed by the part code, water heater model and existing connection type.

If you are not sure about compatibility, it is recommended to compare with a photo of the existing part where the code, marking and electrical contacts are clearly visible.

! Before placing an order, contact the seller to find out the thermostat number, because these models have several variants!!! Without communication with the seller, the thermostat will not be accepted back!
