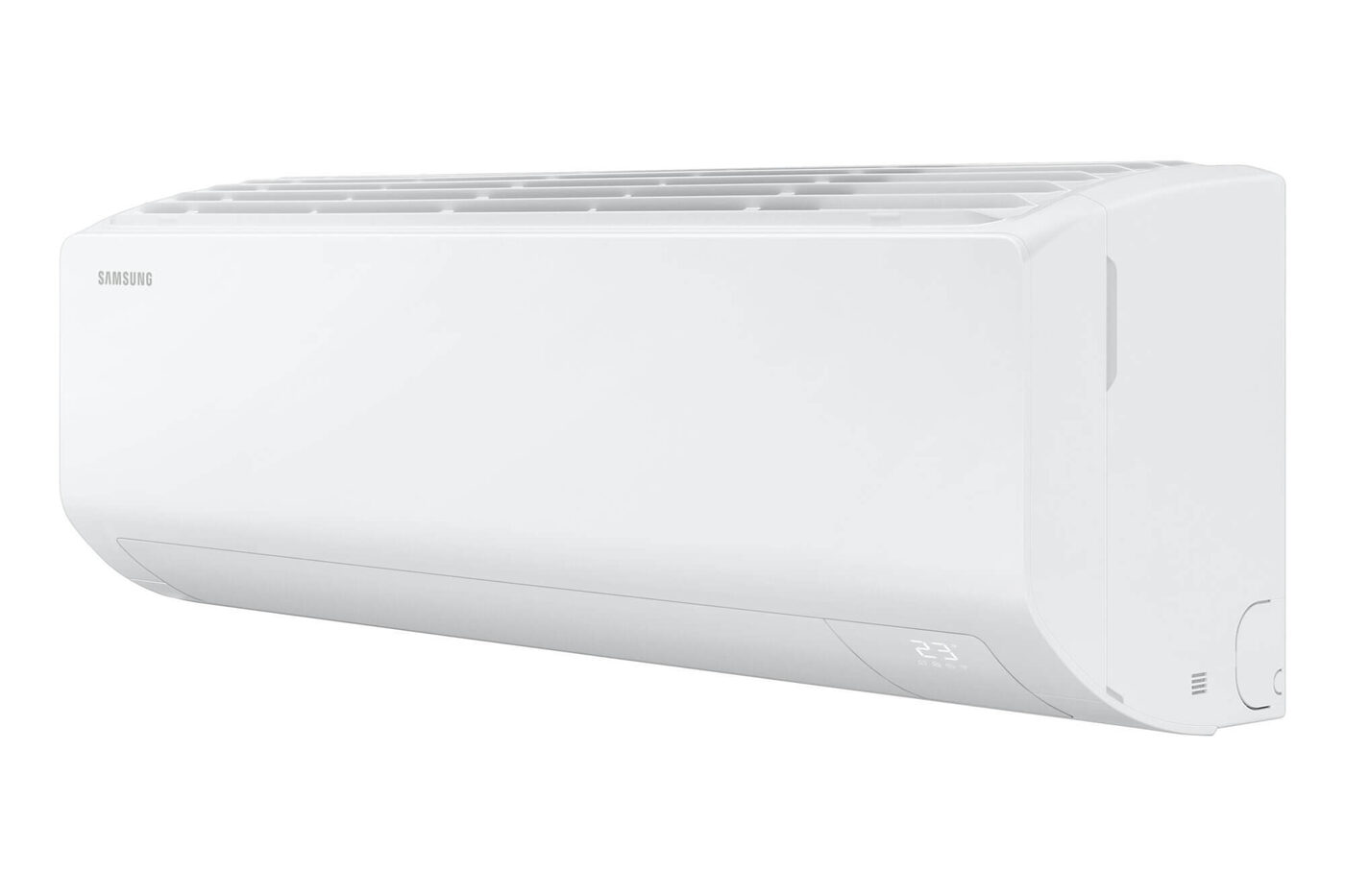

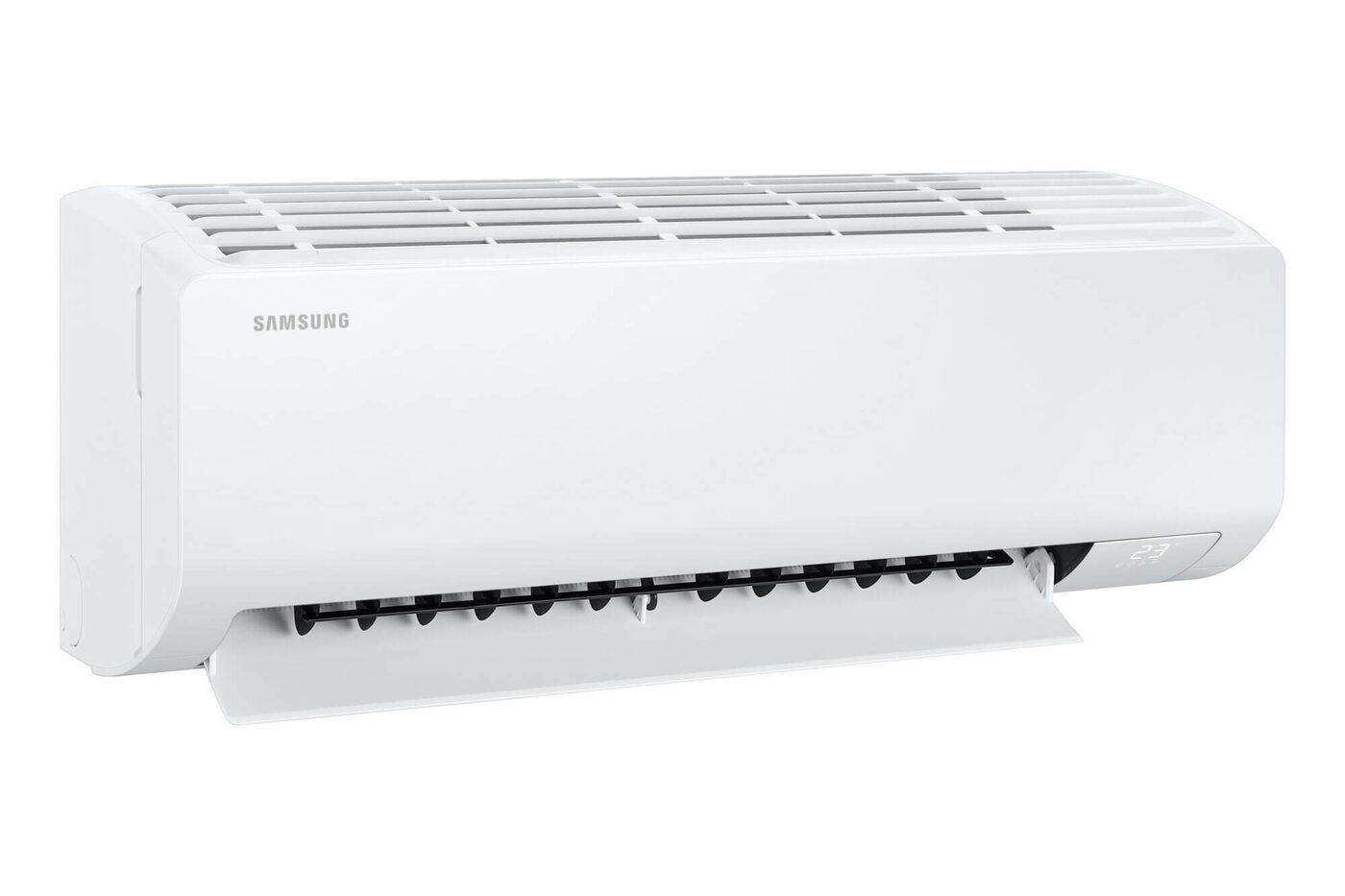

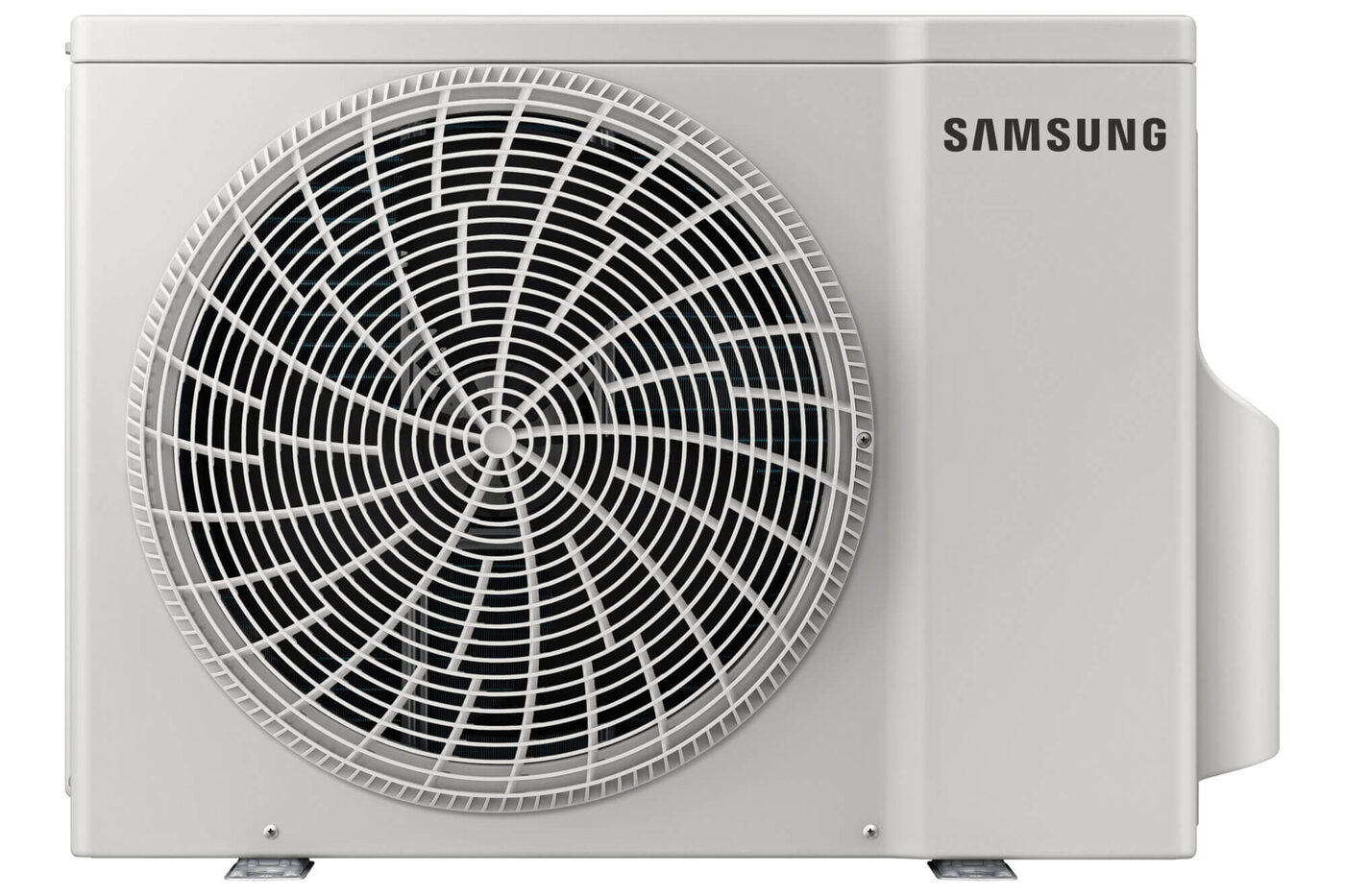

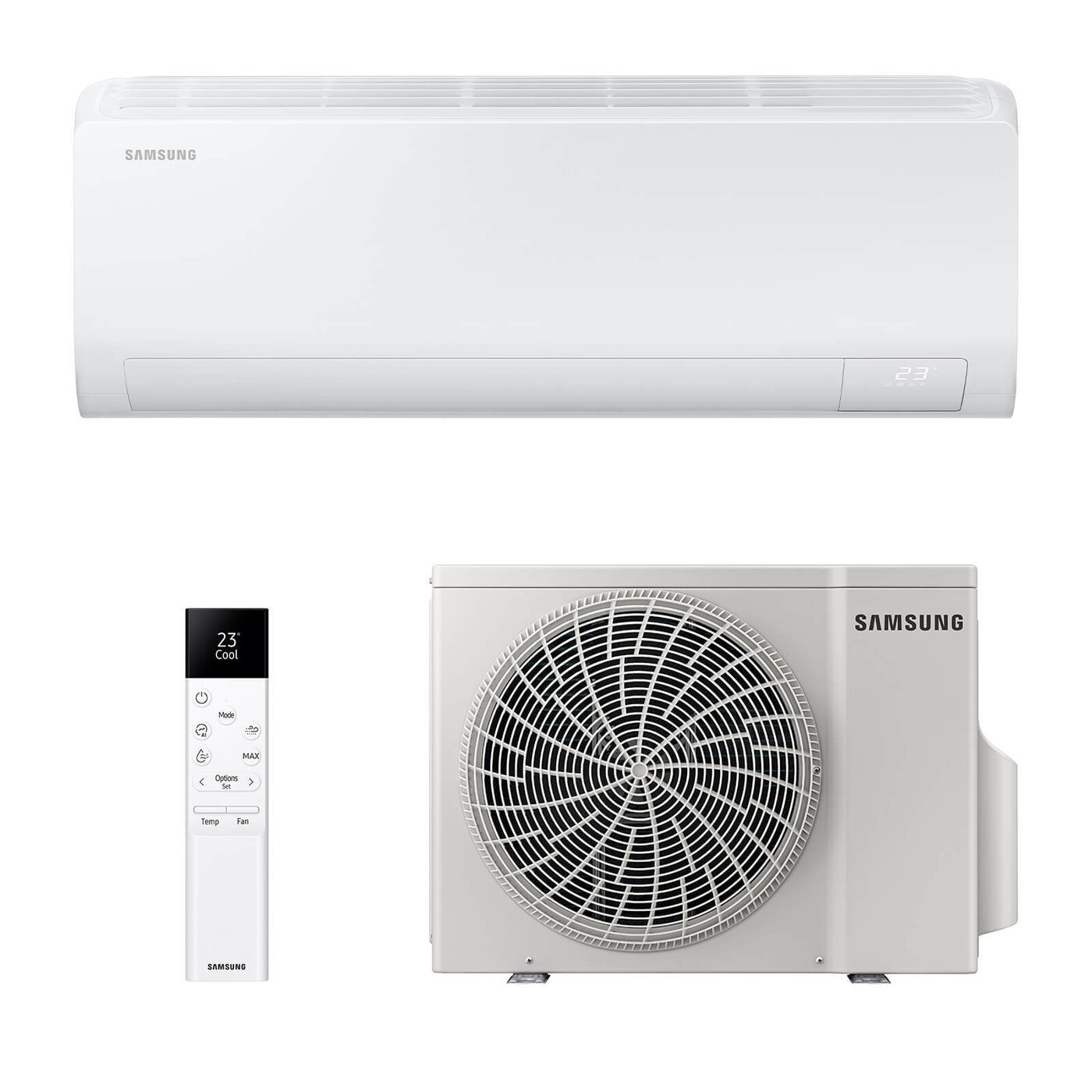

Air conditioner SAMSUNG Cebu S2, 2.0/2.2k W, AR50F07C1AHXEU / C1AHNEU
Cebu S2
Ease of use and convenient cleaning

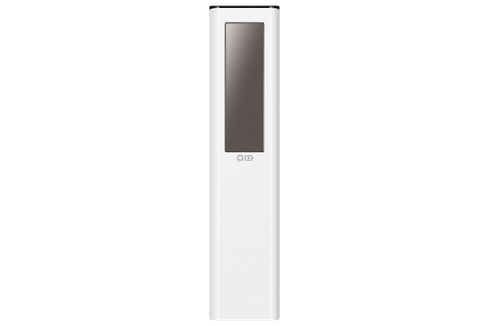

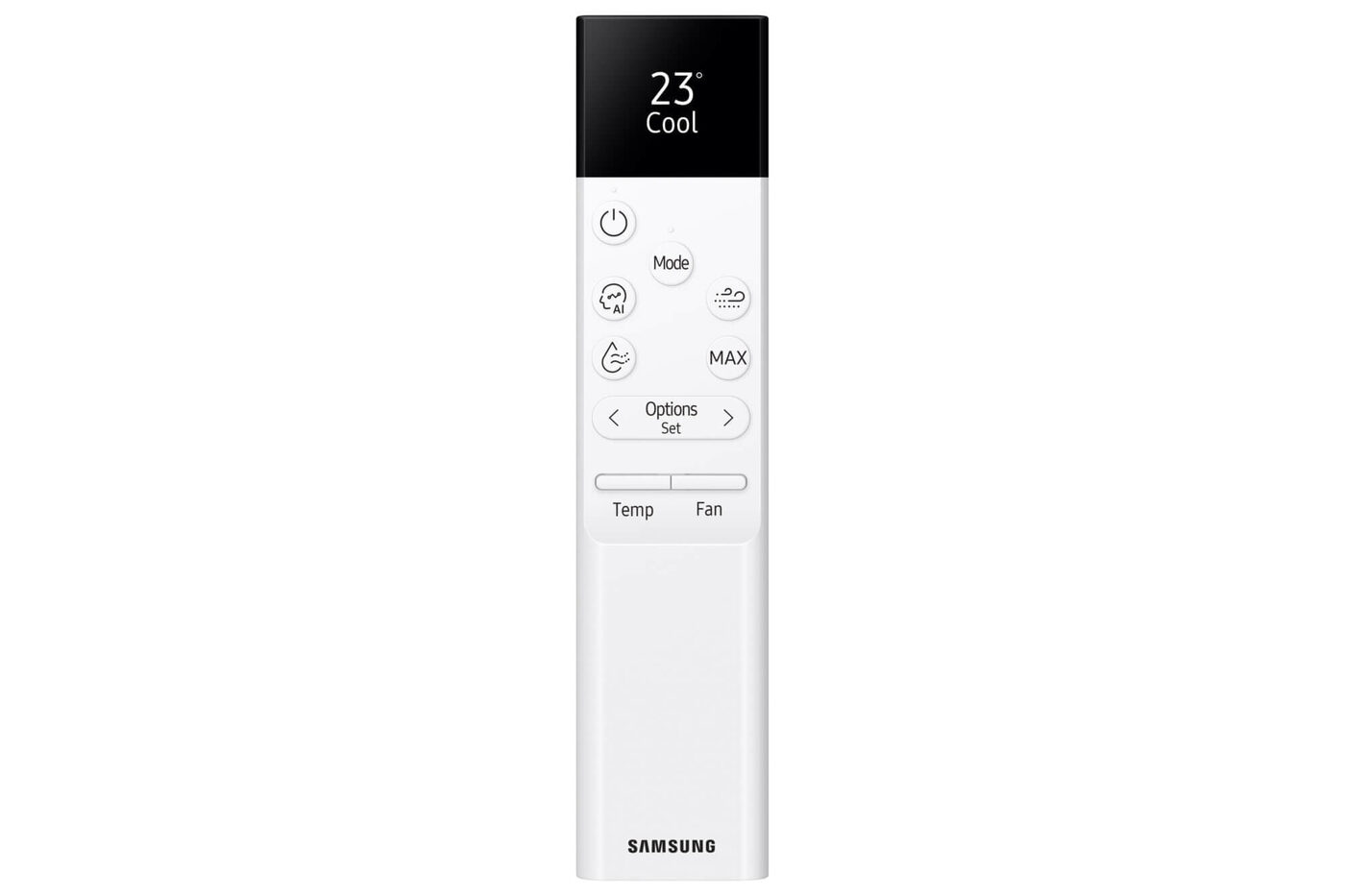

The Cebu S2 offers users easy and effective climate comfort. The unit comes with a light-weight rechargeable remote controller⁹ that has an intuitive design and a large OLED display. Alternatively, users can manage and control the indoor climate remotely using the SmartThings app ⁶. The Cebu S2 offers Easy Filter Plus¹³ that helps to improve indoor air quality. The filter’s location on top of the unit makes it easy to access, remove and clean, too.
.jpg/jcr:content/renditions/image-introduction.png)
Product Specifications:
Capacity
Capacity (Cooling, Btu/hr)
6824 Btu/hr
Capacity (Heating, Btu/hr)
7506 Btu/hr
Capacity (Cooling, Min - Max, Btu/hr)
3,583 ~ 10,236 Btu/hr
Capacity (Heating, Min - Max, Btu/hr)
2,900 ~ 15,355 Btu/hr
Capacity (Cooling, kW)
2.00 kW
Capacity (Heating, kW)
2.20 kW
Capacity (Cooling, Min - Max, kW)
1.05 ~ 3.0 kW
Capacity (Heating, Min - Max, kW)
0.85 ~ 4.5 kW
Energy Efficiency
SEER(W/W, Energy Label)
7.60
EER (Cooling) [W/W]
4.35 W/W
COP (Heating) [W/W]
4.68 W/W
EER (Cooling, Btu/hW)
14.84 Btu/hW
COP (Heating, Btu/hW)
15.97 Btu/hW
Energy Efficiency Class for cooling (Grade) (A+++ - D)
A++
Energy Efficiency Class for heating in 'Average' heating season (Grade) (A+++ - D)
A+
Energy Efficiency Class for heating in 'Average' heating season (W/W)
4.20
Noise Level
Sound Power Level(Indoor, Cooling, dBA)
54 dBA
Sound Power Level(Outdoor, Cooling, dBA)
60 dBA
Noise Level (Indoor, High/Low, dBA)
37 / 19 dBA
Noise Level (Outdoor, High/Low, dBA)
45 dBA
Electrical Data
Power Source(Ø//V/Hz)
1 / 220-240 / 50
Power Consumption(Cooling, W)
460 W
Power Consumption(Heating, W)
470 W
Operating Current(Cooling, A)
2.4 A
Operating Current(Heating, A)
2.5 A
Physical specification
Gross Dimension (Indoor, WxHxD, mm*mm*mm)
880*290*375 mm
Gross Dimension (Outdoor, WxHxD, mm*mm*mm)
834*620*323 mm
Net Dimension (Indoor, WxHxD, mm*mm*mm)
820*299*215 mm
Net Dimension (Outdoor, WxHxD, mm*mm*mm)
710*540*220 mm
Gross Weight (Indoor, kg)
11.0 kg
Gross Weight (Outdoor, kg)
26.2 kg
Net Weight (Indoor, kg)
9.1 kg
Net Weight (Outdoor, kg)
24.0 kg
Loading Quantity (20/40/40Hft without Pipe)
105 / 215 / 252
Technical Information
Piping Length (Max, m)
15 m
Piping Height (Max, m)
8 m
SVC Valve (Liquid (ODxL))
6.35
SVC Valve (Gas (ODxL))
9.52
Moisture Removal (l/hr)
0.7 l/hr
Air Circulation (Cooling, m3/min)
9.5 ㎥/min
Refrigerant (Type)
R32(Contains fluorinated greenhouse gases, GWP=675)
Refrigerant (Charging, kg)
0.70 kg
Refrigerant (Charging, tCO2e)
0.47 tCO2e
Low Ambient (Cooling, °C)
-10~46 ℃
Low Ambient (Heating, °C)
-15~24 ℃
Outdoor Unit (Compressor Type)
BLDC
Outdoor Unit (Anti-Corrosion Fin)
Yes
Air Flow
WindFree Cooling
No
Air Direction Control (Up/Down)
Auto
Air Direction Control (Left/Right)
Auto
Air Flow Control Step (Cool/Fan)
5/4
Air Purification
PM 1.0 Filter
No
Tri Care Filter
No
Easy Filter Plus (Anti-Bacteria)
No
Auto Clean (Self Cleaning)
Yes
Convenience
SmartThings
Yes
AI Auto Cooling
Yes
Motion Detect Sensor
No
Freeze Wash
No
Filter Cleaning Indicatior
Yes
Indoor Temp. Display
Yes
Display On/Off
Yes
Beep On/Off
Yes
24-Hour Timer
Yes
Auto Changeover
Yes
Auto Restart
Yes
Operating Mode
Auto Mode
Yes
Fast Cool
Yes
Dry Comfort
No
Good Sleep
Yes
Eco Mode
Yes
Dehumidification
Yes
Fan Mode
Yes
Quiet
Yes
Smart
WiFi Embedded
Yes
App Connectivity
SmartThings App Support
Yes
