Actuator for HERZ SMARTCONTROL PLUS 3-way and 4-way valves, 1452201

SMARTCONTROL PLUS actuator with outdoor temperature sensor

HERZ SMARTCONTROL PLUS enables you to control and maintain the required temperature in the heating circuit.

The actuator is configured using the buttons on it and the graphic display. The display also shows real-time temperature readings and other relevant data.

Application:

• Control of the heating and/or cooling circuit, taking into account the outdoor air temperature

• Designed for installation on Herz 3-way (1 2137 XX) or 4-way (1 2138 XX) mixing valves.

Parameters:

• Control: 3-point PID

• Possibility of interconnecting several actuators with BUS connection

• Supply voltage: 230V

• Torque: 6Nm

• Operating time: 120 s / 90°

• Circulation pump control

• Possibility of connecting a room temperature controller

• Protection class: IP42

• Temperature sensor type: Pt1000

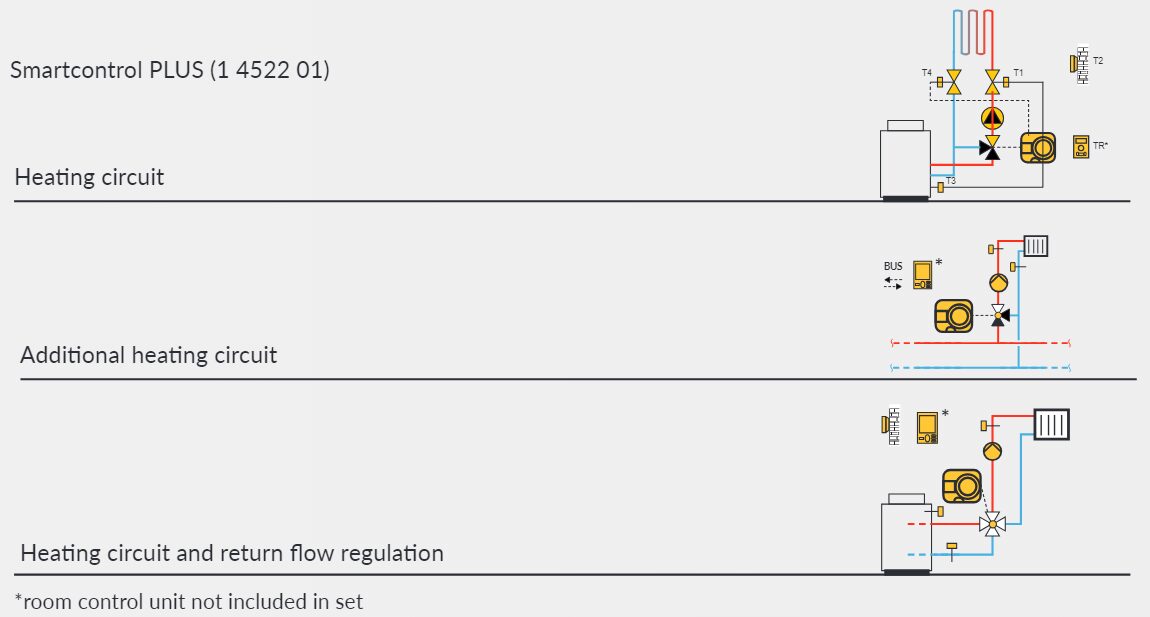

• Number of preset hydraulic circuits: 2

• Temperature setting range: 10 - 90 °C

Included:

1. Button: step back

2. Button: left and decrease

3. Button: right and increase

4. Button: menu and confirm

5. USB port for software updates and PC connection

6. Color graphic display (240 x 240 mm)

7. Button: help

8. Button: switch to manual mode

9. Removable manual rotation knob

10. Power cord with plug (2 m)

11. Cable for connecting circulation pump (0.5 m)

12. Terminal block for two sensors and communication

13. Temperature sensor (1 m)

14. Temperature sensor (3 m)

15. Outdoor air temperature sensor
