Continuous flow of drinking water preparation equipment UB LINE 600

Continuous flow of drinking water preparation equipment "UB LINE 600"

"UB LINE 600" is water preparation equipment that produces clean drinking water. The equipment is cleaned water from inorganic, organic, as well as microbiological impurities.

For example: mechanical impurities, salts, alkalis, ions, microorganisms, bacteria, etc.

The degree of water purification can reach up to 98%. The main element of the device is the membrane, which completely cleans water from organic substances whose molecular size is larger than 0.0001μ.

Chemical reagents and substances are not used in the cleaning process.

The equipment includes several stages of purification, which can be further improved with for the needs of each client in a given case.

Dimensions: 40x39x13 cm

 PURE WATER

 FLOW RATE: 1.5 l min

 HIGH EFFICIENCY

 ATTRACTIVE DESIGN

 QUALITY: High quality has been used in the production materials.

 COMPACT SIZE: The device is easy to place, install and service.

 QUICK CHANGE CARTRIDGES: very simple subsequent operation, as the customer can easily replace the cartridges.

 NO STORAGE TANK: Purified water is provided with a powerful discharge.

 AUTOMATIC RINSING: Every time after taking water, the machine performs a small rinse - there is no accumulation of water, and the formation of bio-films in cartridges, membrane and pipelines.

 WATER ECONOMY: Water in wastewater is about 5 times less than in standard reverse for osmosis equipment. Ratio (treated/wastewater) 1:2

 24 RINSING: If water is not used for more than 24 hours, the machine performs rinsing.

 STERILITY: No need for cartridges, housings, tubing and storage tanks disinfection.

 REMINDER SIGNALS: Cartridge changes are reported once a year.

 LED LIGHT ALERTS: Reports device malfunctions or cartridge replacements.

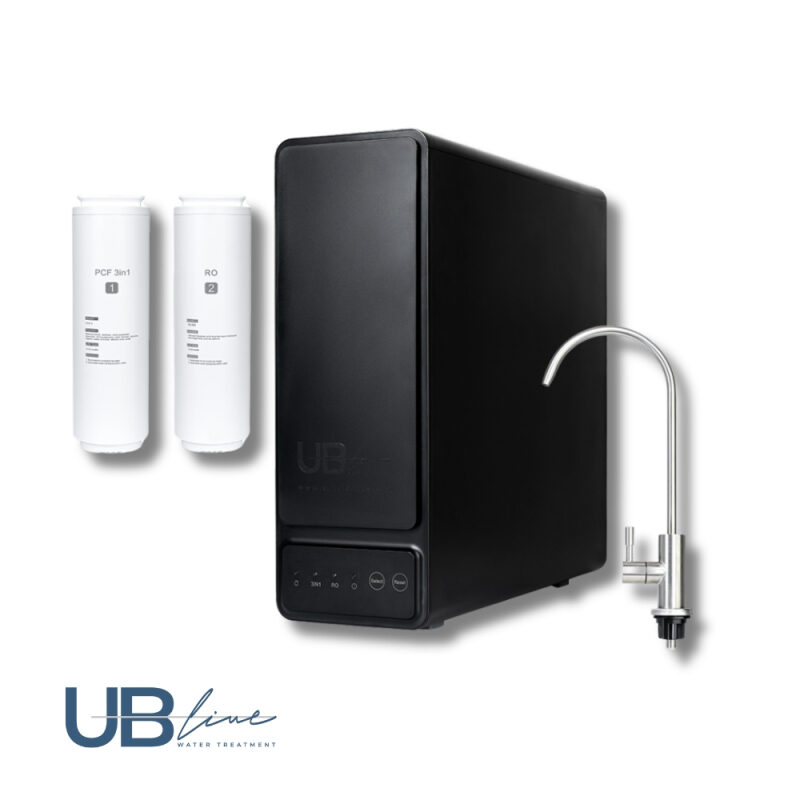

EQUIPMENT COMPLETE

1. DEVICE "UBLINE 600"

2. COMBINED FILTER "UB LINE 3 IN 1"

3. MEMBRANE "UB LINE RO"

4. PRESSURE INCREASE PUMP 24Vdc (built into the system):

Provides the necessary pressure on the membrane.

5. OUTLET FAUCET: Stainless steel

6. ADAPTER: 100-240V. 50/60Hz: 24Vdc.

7. WATER CONNECTION FITTINGS AND PIPES.

OPERATION OF THE EQUIPMENT

REPLACEABLE CARTRIDGES

1. COMBINED FILTER "UBLINE 3-1"

This is a unique cartridge that combines several stages of purification.

First: Mechanical PRIMS-filter (removal from mechanical particles).

Second: Coal PRIOR-filter (purification of organic and chemical particles).

Third: Fine charcoal AFTER-filter (removal from organic impurities).

Recommended replacement frequency: 1 time per year

2. Membrane “UBLINE RO”:

Purifies water from salts, metals, pesticides, microorganisms, bacteria, etc

Recommended replacement frequency: 1 time in 2 - 4 years.

TERMS OF OPERATION

WATER TEMPERATURE: (min/max): 5° - 38°C

PRESSURE: (min/max): 2 – 4.5 bar

TDS: (Max): 1500ppm.

EQUIPMENT WARRANTY: 2 YEARS
